This pump kit is suitable for bores/dams with a total lift from standing water level up to 70mtrs & will pump up to 10hrs per day in summer. Our kits are designed for DIY install with easy to follow instructions saving you time and money.

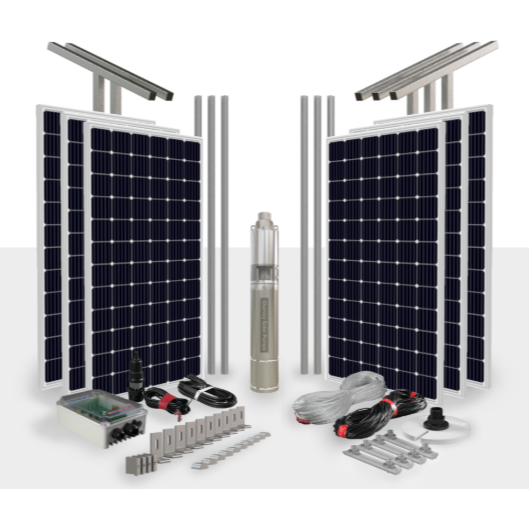

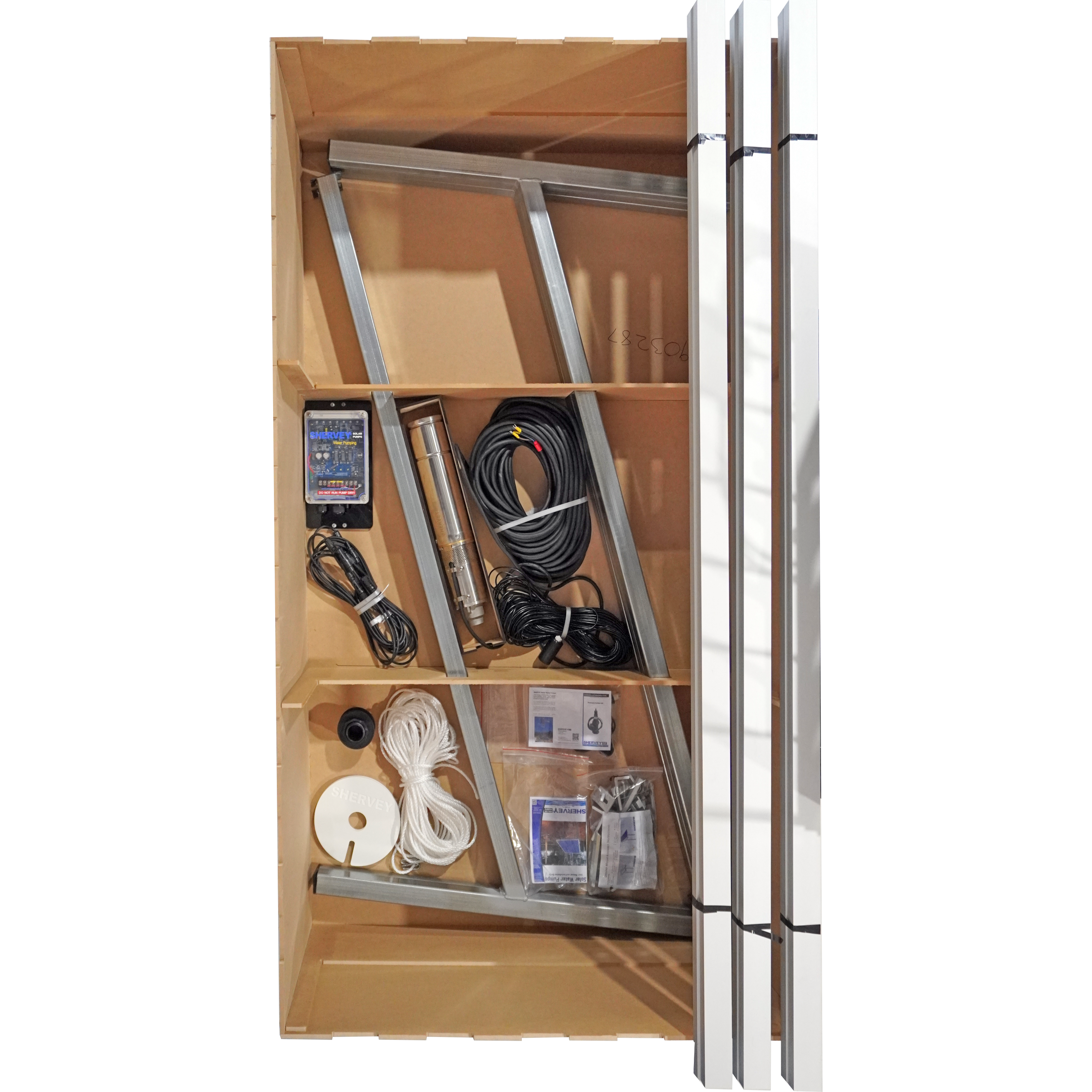

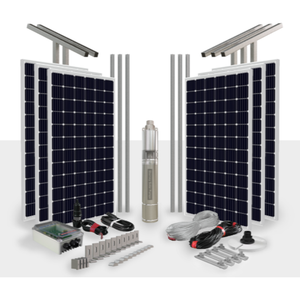

Kit includes

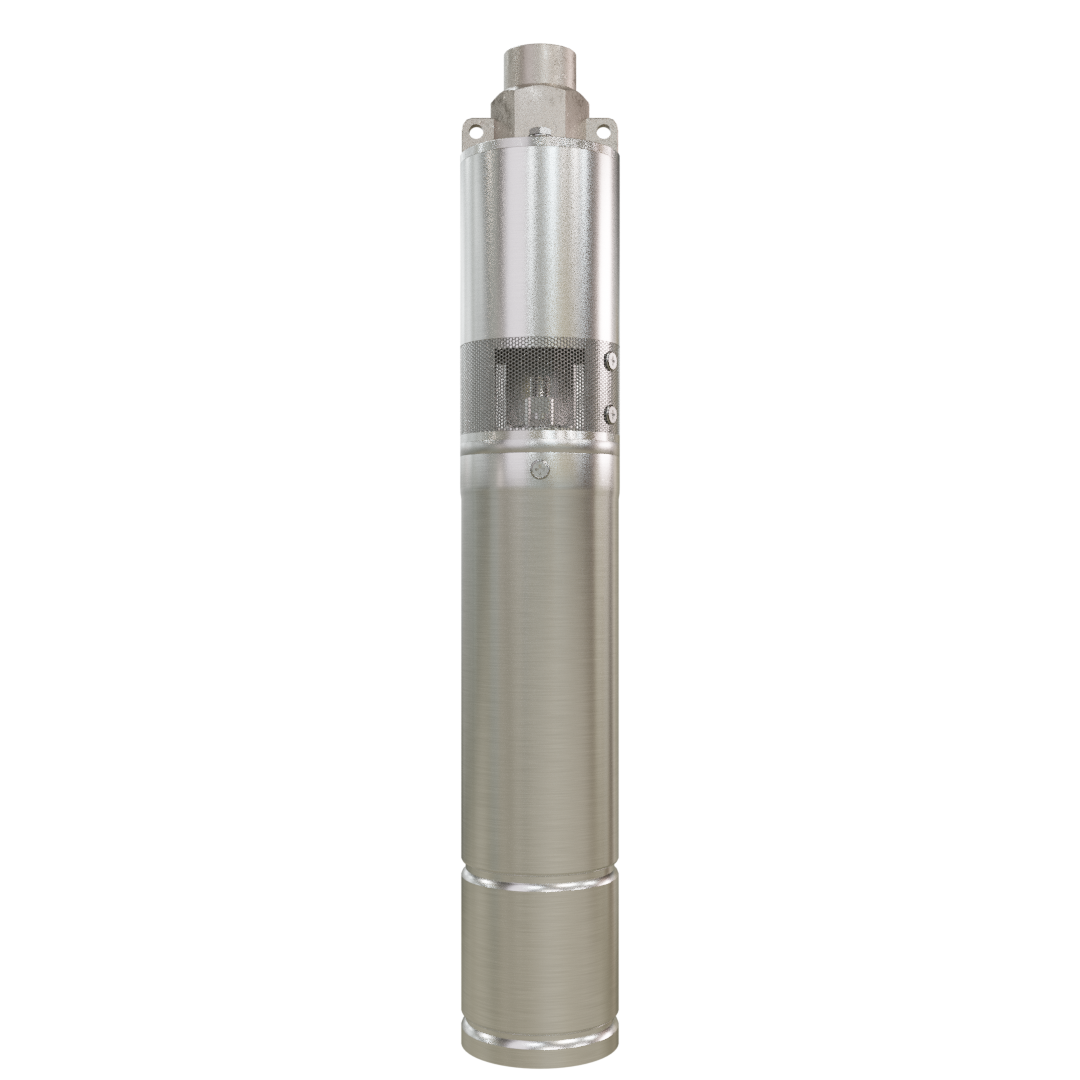

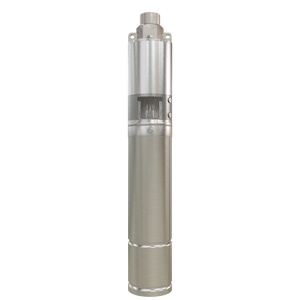

- 1000watt Shervey Solar Pump

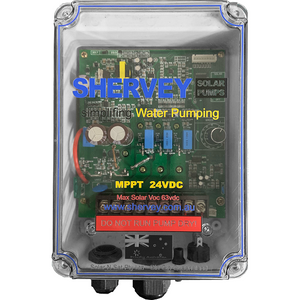

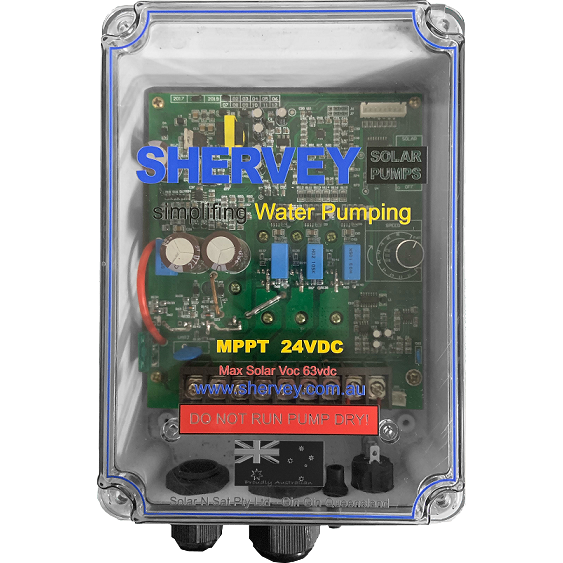

- MPPT Solar Pump Controller
- 40mtrs Heavy Duty 4.0mm Pump Cable
- Solar Panel Mounting Frame, Rails & Fittings
- Bore Cap 1-1/2"
- Pressure Switch with 3mtr Cable
- Safety Line with Easy Fit Stainless Clips 40mtr
- High Quality Bearings for Longer Life

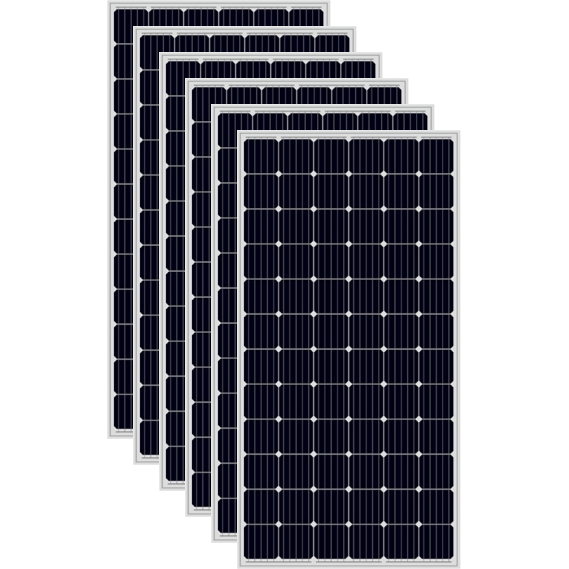

- 6 x 320watt A-grade Solar Panels (1950mm x 992mm)
- Solar Connection Cable
- Solar Panel Joiners
- Low Well Sensor with 100mtr Cable
- User Manual
- 2yr Warranty
* You will need to source your own Polypipe and fittings
Specifications
| Pump Diameter |
4" |
| Outlet Diameter |
1" |
| Wet End Type |
Helical Rotor (Screw) |
| Max Submersion |
40mtrs |
| Warranty |
24 months |
Max Flow Rate
| 0mtrs TD Head |
4000lts per hour (885gal) |
| 20mtrs TD Head |
3600ltrs per hour (800gal) |
| 40mtrs TD Head |
3150ltrs per hour (700gal) |
| 60mtrs TD Head |
2500ltrs per hour (555gal) |
| 70mtrs TD Head |
2100ltrs per hour (465gal) |
