This pump kit is suitable for bores/dams with a total lift from standing water level of up to 60mtrs & will pump up to 10hrs per day in summer. Our kits are designed for DIY install with easy to follow instructions to save you time and money.

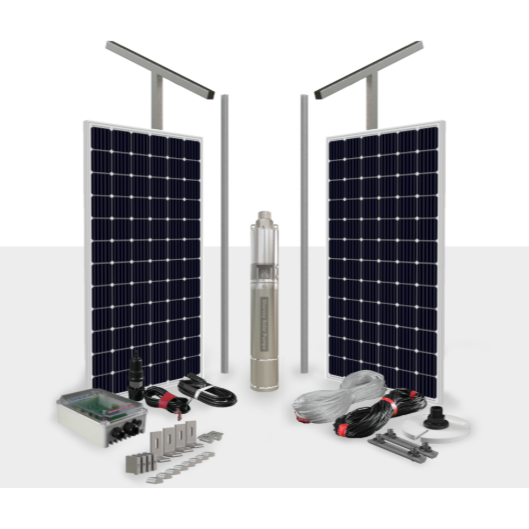

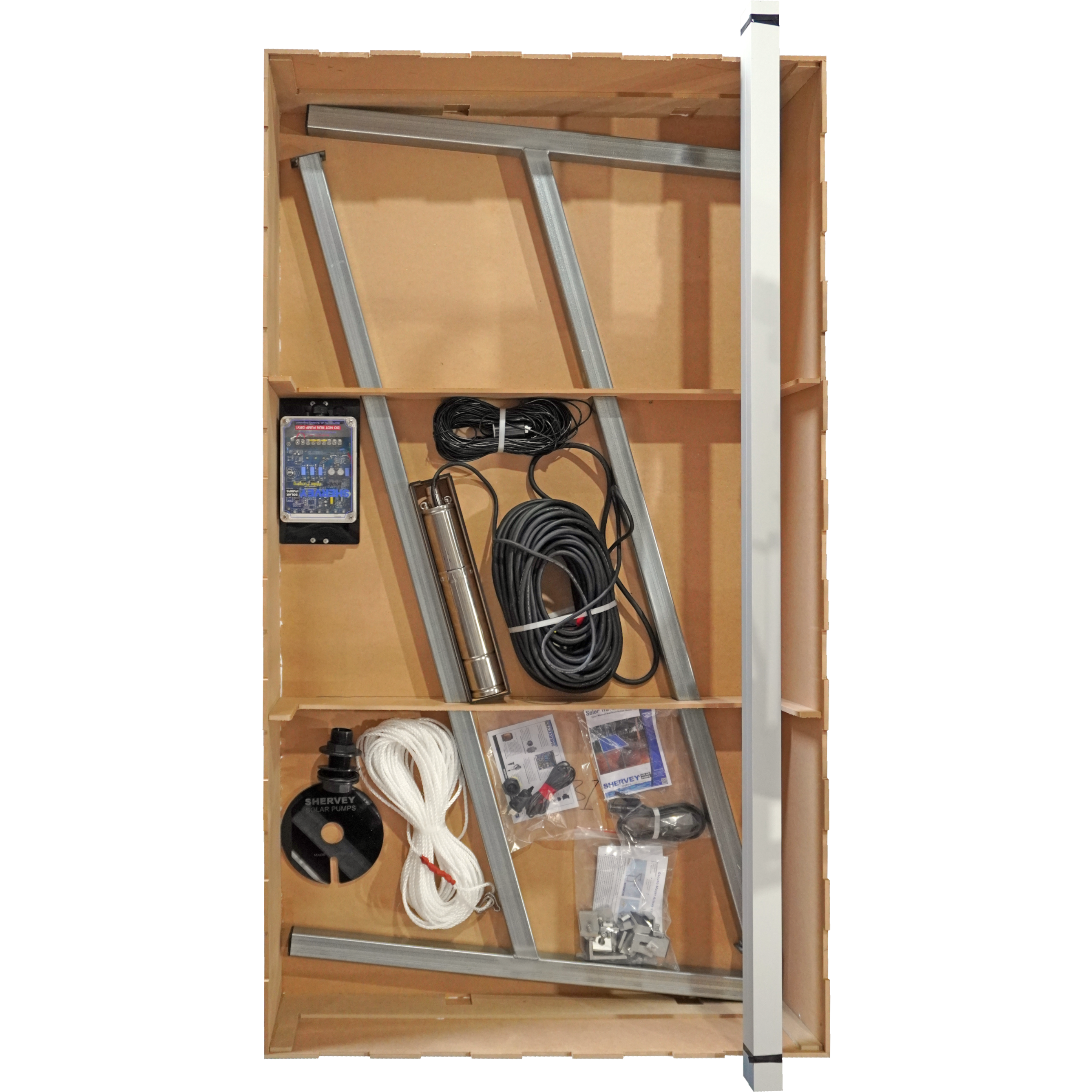

Kit includes

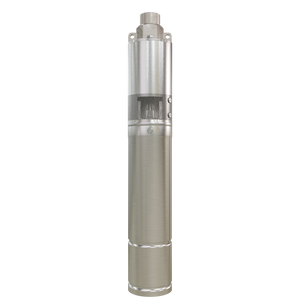

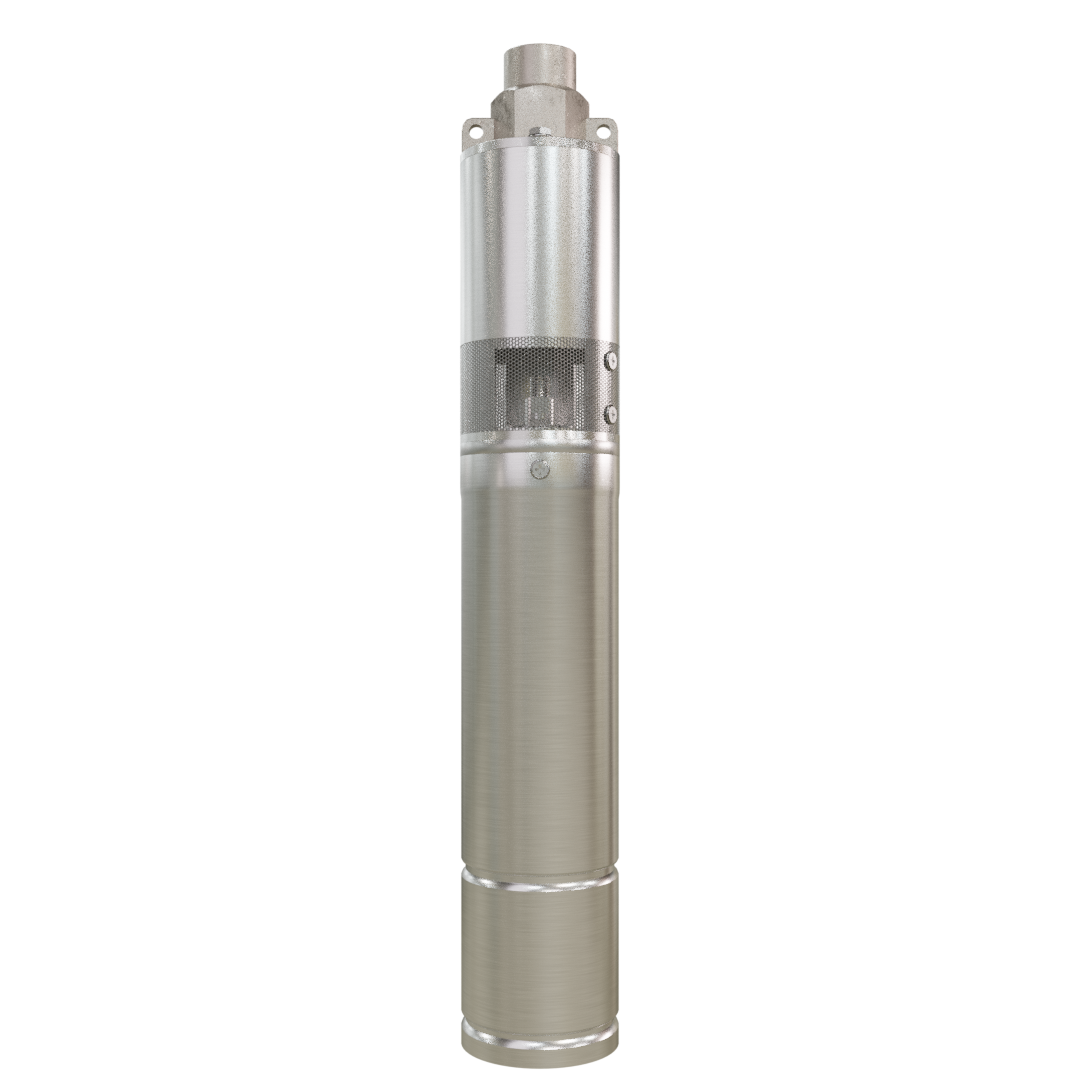

- 450watt 48v Solar Pump

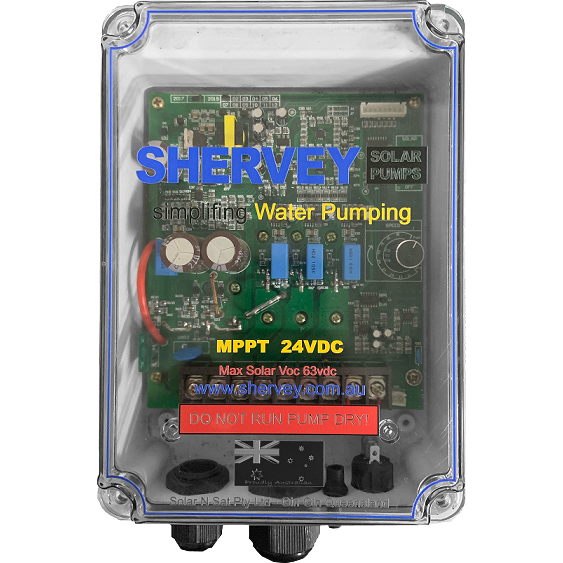

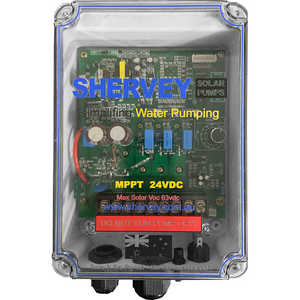

- MPPT Solar Pump Controller
- 40mtrs High Quality Pump Cable
- Solar Panel Mounting Frame, Rails & Fittings
- Bore Cap 1-1/2"
- Pressure Switch with 3mtr Cable
- Safety Line with Easy Fit Stainless Clips 40mtr
- High Quality Bearings for longer life

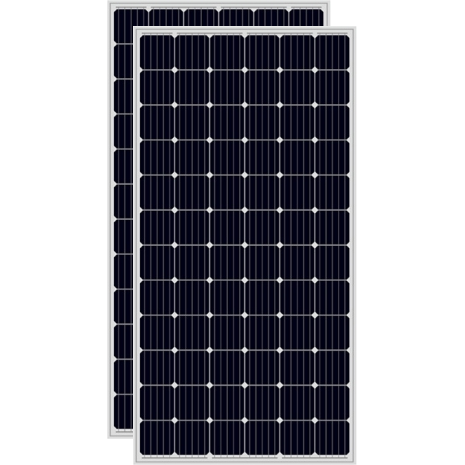

- 2 x 320watt Solar Panels (1950mm x 992mm)
- Solar Connection Cable
- Low Well Sensor with 100mtr Cable
- User Manual
- 2yr Warranty
* You will need to source your own Polypipe and fittings.
Specifications
| Pump Diameter |
3 inch |
| Outlet size |
3/4" |
| Type |
Helical Rotor (Screw) |
| Max Submersion |
40mtrs |
| Warranty |
24 months
|
Max Flow Rate
| 0mtrs TD Head |
2100ltrs per hour (460gal) |
| 10mtrs TD Head |
2000ltrs per hour (440gal) |
| 20mtrs TD Head |
1900ltrs per hour (415gal) |
| 30mtrs TD Head |
1800ltrs per hour (400gal) |
| 40mtrs TD Head |
1600ltrs per hour (355gal) |
| 50mtrs TD Head |
1500ltrs per hour (330gal) |
| 60mtrs TD Head |
1350ltrs per hour (290gal) |
|
|
