This pump kit is suitable for bores/dams with a total lift from standing water level up to 40mtrs & will pump up to 10hrs per day in summer. Our kits are designed for DIY install with easy to follow instructions saving you time and money. Check our inclusions below

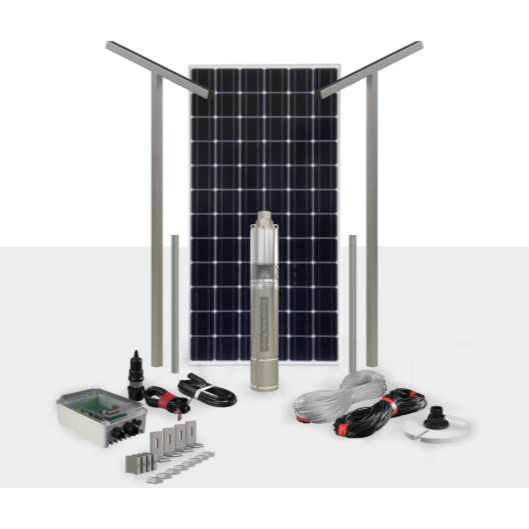

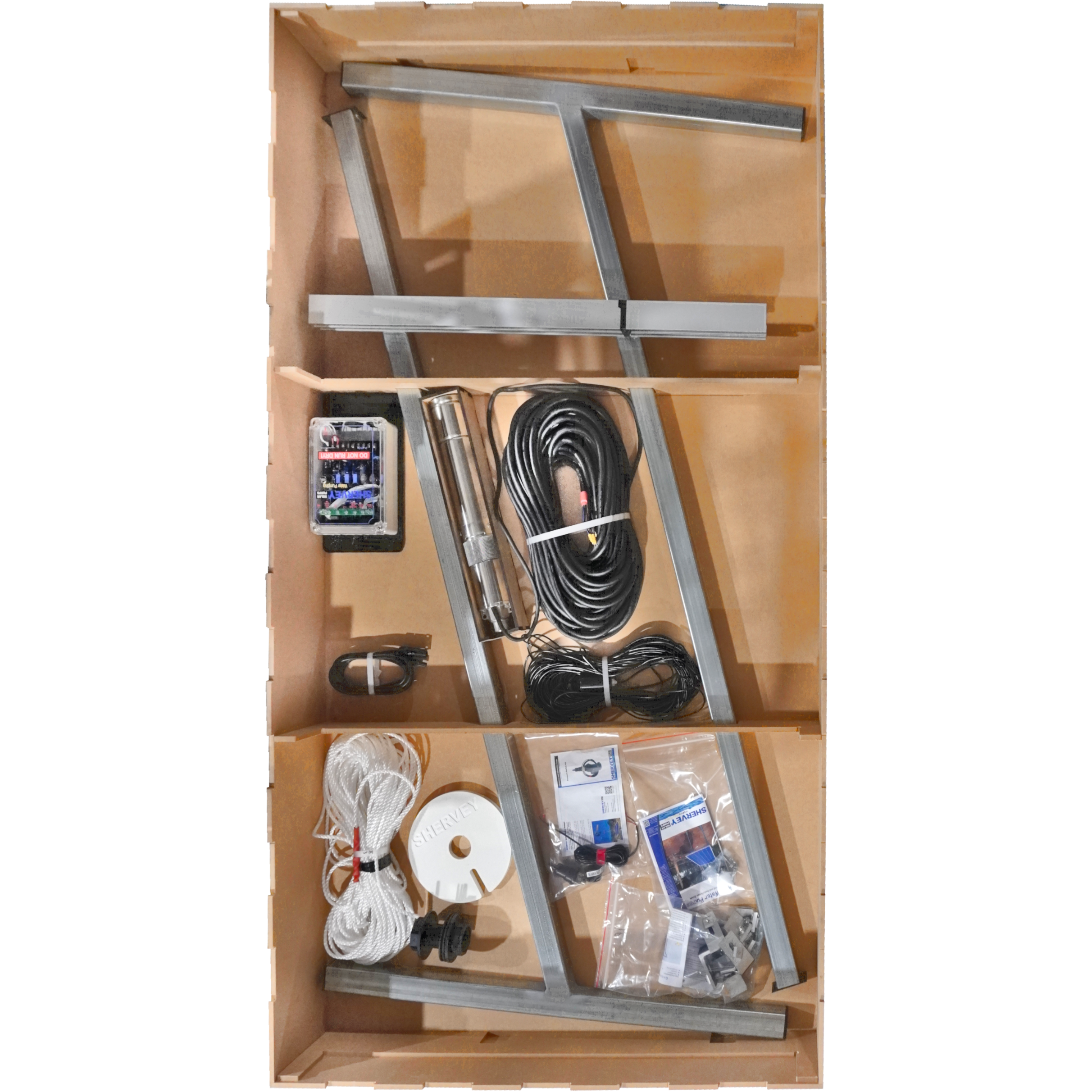

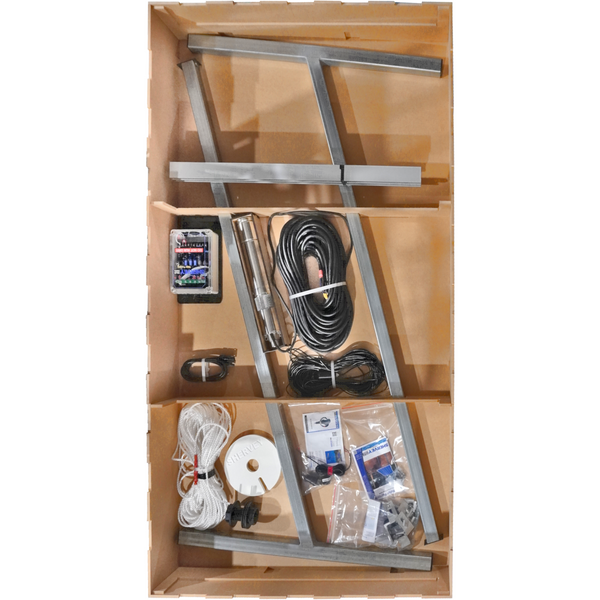

Bundle Inclusions

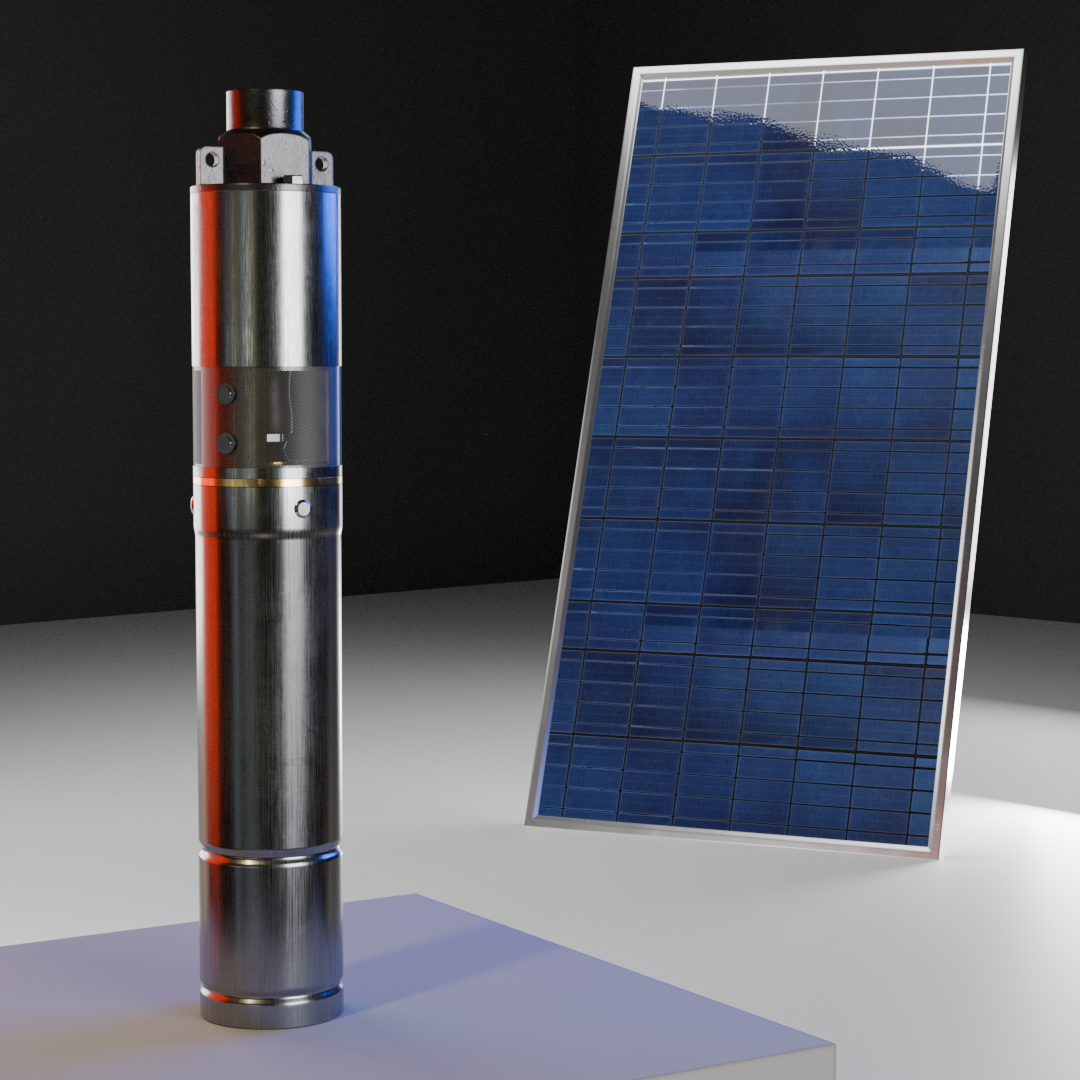

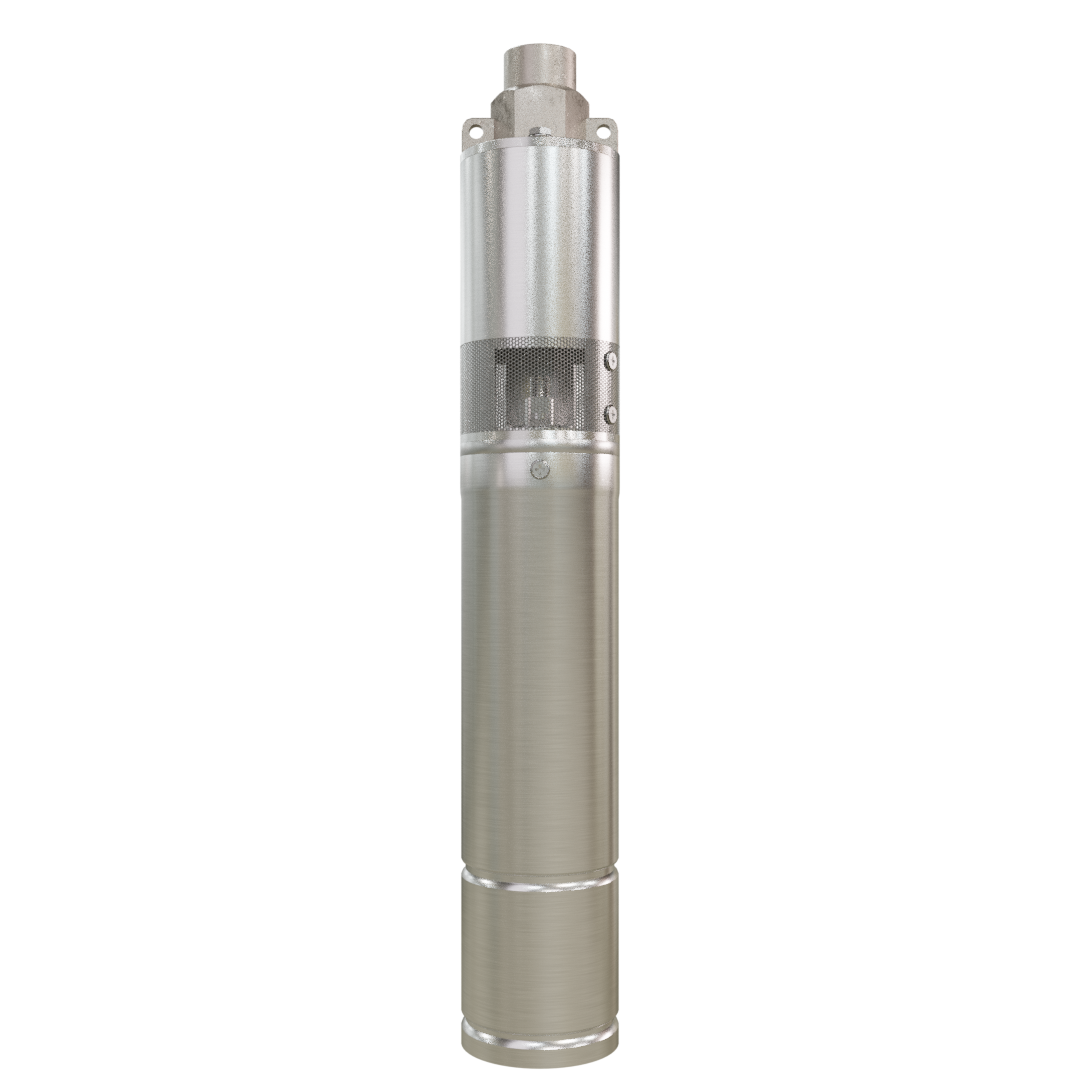

- 210watt 24v Solar Pump

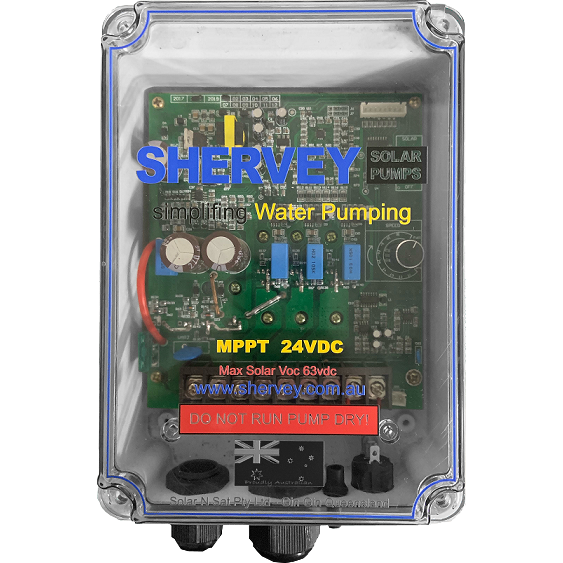

- MPPT Solar Pump Controller
- 40mtrs High Quality Pump Cable
- Solar Panel Mounting Frame, Rails & Fittings
- Bore Cap 1-1/2"
- Pressure Switch with 3mtr Cable
- Safety Line with Easy Fit Stainless Clips
- High Quality Bearings for longer life

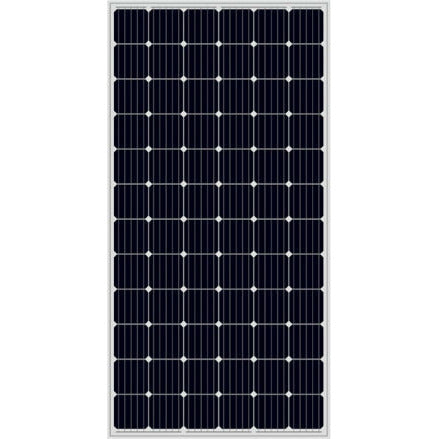

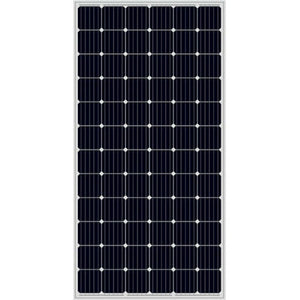

- 320watt Solar Panel (1950mm x 992mm)
- Solar Connection Cable
- Low Well Sensor 100mtr Cable
- User Manual
- 2yr Warranty
* You will need to source your own Polypipe and fittings
Specifications
| Pump Diameter |
3" |
| Outlet Size |
3/4" |
| Wet End Type |
Helical Rotor (Screw) |
| Max Submersion |
40 mtrs |
| Warranty |
24 months
|
Max Flow Rate
| 0mtrs TD Head |
1800ltrs per hour (400gal) |
| 10mtrs TD Head |
1700ltrs per hour (375gal) |
| 20mtrs TD Head |
1600ltrs per hour (355gal) |
| 30mtrs TD Head |
1400ltrs per hour (310gal) |
| 40mtrs TD Head |
1250ltrs per hour (275gal) |
